Security Camera System with 32 Bullet POE IP Security Cameras

Full Color Night Vision

Security Camera System with Night Vision Cameras

About the Cameras Parameters:

Model

G4H-B1-POE

System structure

Embedded RTOS,Dual-core 32bit DSP(GK7205V210),pure hard compression ,watch dog

Sensor

1/2.9" low illumination CMOS sensor, color 0.01Lux@F1.2, black/white 0.001Lux@F1.2

Video compression

H.265AI (Compatible with H.265/H.264), support dual stream, AVI;0.1M~10Mpbs variable;1~30f/s variable

Image output

Main stream: 2560*1440@20fps,2304*1296@20fps,1920*1080@25fps; sub-stream: 800*448@25fps;

Shutter

1/50(1/60) s to 1/10,000s

Lens

Default 2.8mm Lens (110° Wide Angle View), Optional 4/6/8mm

Day and night

Dual light source optional (White light + Infrared light)

Support full-color night vision (White light)

Default black and white night vision (Infrared light)

Noise reduction

Support 2D/3D

Wide dynamic

Support digital

Audio compression

Microphone inside, audio &video synchronization

Network interface

1*RJ45 10/100M adaptive Ethernet port; support RTSP/FTPDHCP/NTP/UPnP etc

Singal interface

One photo resistance interface, one IR-CUT interface, support photo resistance signal and IR-CUT links to IR

Intelligence analysis

Support human detection, support customization of other intelligent functions

Other function

Support WEB, OSD, live video transmission, motion detect and IO alarm, front-end storage/playback/download, and center reminder and image linkage, support FTP capture; united remote client monitoring software、MYEYE; perfect SDK;

ONVIF

Support

Mobile monitoring

Support multiple mobile monitoring(iOS, Android) APP:

Browser viewing device

www.xmeye.net

Mobile APP

XMEYE/iCsee

Reliability

Comprehensive lightning protection, 7 * 24 hours -10℃~65℃high temperature stable and reliable testing

Power

DC12V/2A input & Power over Ethernet

Dimension

184mm*69mm*69mm

Always use WEISKY cameras with WEISKY NVR units for full-featured use and functionality.

Face Detection/Human Detection/Motion Detection All should be the same program, or not work!

SECURITY CAMERA FEATURES
  • 4 Megapixel IP Camera (2688×1520)

  • 2.8mm Lens (110° Wide Angle View)

  • Up to 164ft Infrared Night Vision

  • Starlight - low light performance

  • Built-in Microphone

  • H.265 Video Compression

  • Weatherproof - Indoor/Outdoor (IP67)

  • Wide Dynamic Range - WDR (120dB)

  • Power Over Ethernet - PoE

  • Measurement: 7.5" L x 2.9" W x 2.8"

NVR RECORDER FEATURES
  • 4K Ultra High Definition

  • 32 PoE Camera Inputs

  • Remote Viewing – No Monthly Fees

  • H.265 High Video Compression

  • 320 Mbps Incoming Bandwidth

  • HDMI and VGA Display Output

  • 2 Hard Drive Bays

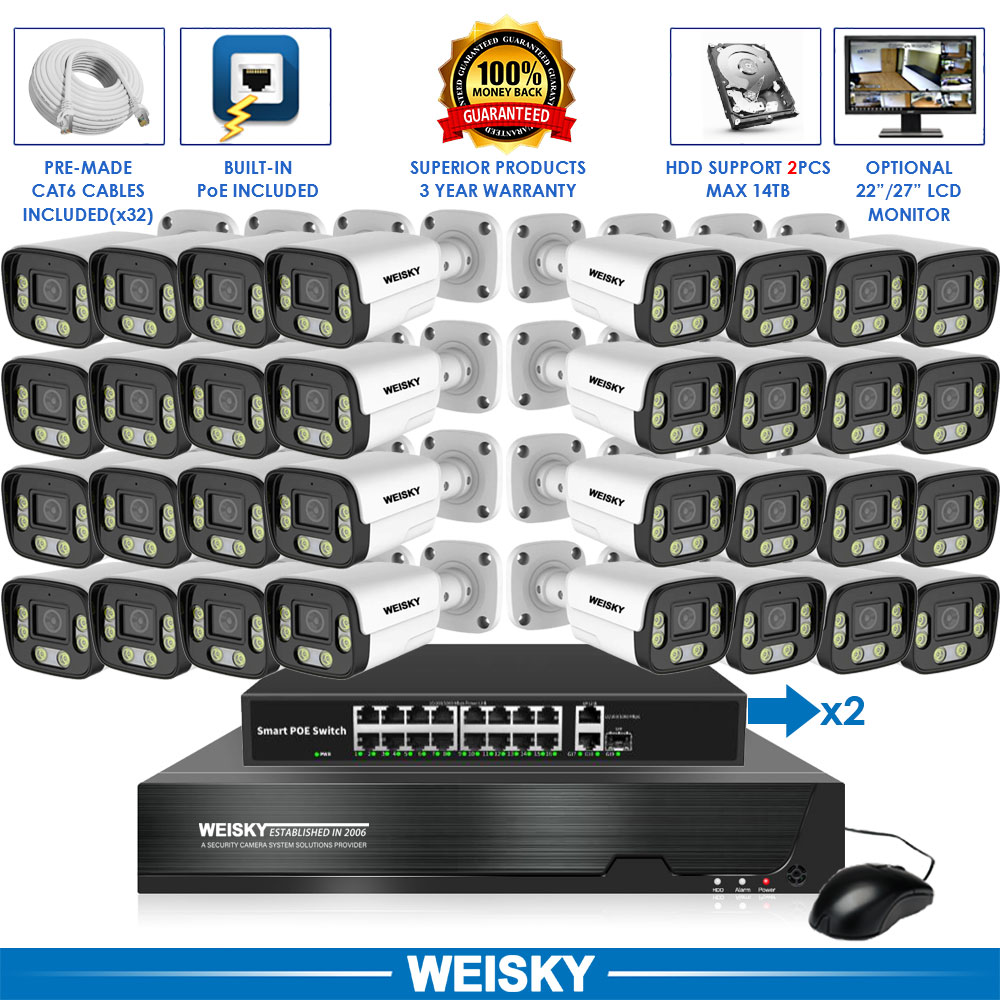

PACKING LIST
  • 4K PoE IP Camera*32

  • 4K PoE NVR *1

  • 16Ch PoE Switch *2

  • Pre-Made Cat6E Cable 30ft*32

  • [Hard disk optional: 2/4/6/8/10/14TB]

  • [Monitor optional: 22"/27"]
